Digital 10″-26″
SKU | 56 00 000 |
---|---|
Rim Diameter | 12"-26" |
Rim Type | Alloy, Steel |
Measuring Type | Digital |
Number of Pistons | 1 Piece |
Direction of Measurement | Vertical |
Control Type | Joystick |
Lathe Type | Foldable, Sliding |
Hydraulic Motor | 1.5 kW |
Motion Engine | 1.1 kW |
Rotation Speed | 5-98 rpm |
Weight | 720 Kg |
Dimensions | 2045x1045x2100 mm |
Package Sizes | n/a |
Digital Measuring System

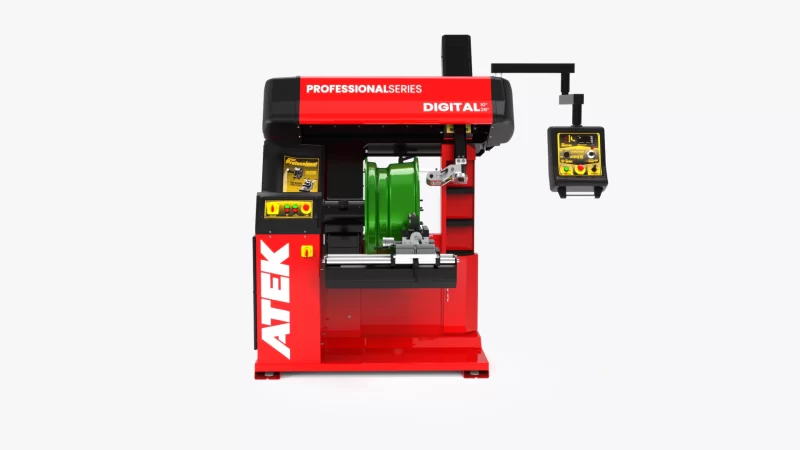

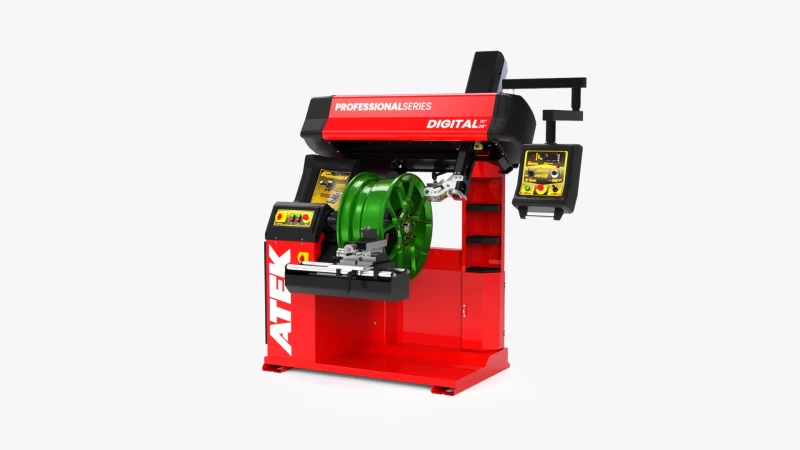

Digital Professional Series Rim Straightener offers fully automatic rim straightening with digital measurement technology. In this way, you do not need manual measurement and the processes are completed quickly. Thanks to this automation offered by technology, a more efficient working environment is created.
Wide Rim Diameter Compatibility
It is suitable for alloy and sheet metal rims between 12"-26". This wide compatibility range provides flexibility to work with various vehicle types and rim models. You can optimize your work processes by using a single machine for rims of all sizes.
Joystick Control Panel
The joystick-controlled control panel is specially designed to provide 360-degree intervention to the rim. Thanks to the ergonomically positioned joysticks, while enjoying the ease of use, adjusting the rim will become a game for you.
Note: The image is the Pangea control panel.
Fully automatic rim straightening
Designed to facilitate your work processes and increase your efficiency. Drawing attention with its user-friendly features, this machine offers comfortable and effective use for operators of all levels.
Sliding lathe
Designed to increase efficiency in your modern production processes, offering high precision and flexibility. This machine allows you to achieve excellent results in the machining of complex parts.
Multi-directional support arm
The Multi-Directional Support Foot provides ideal support for maximum stability and accurate straightening operations, increasing the performance and ease of use of your rim straightening machine.
Electronic speed adjustment
It adapts to various processing needs with wheel rotation speeds ranging from 5 to 98 rpm.
Gear box system
The Geared System offers superior performance on difficult workpieces with its high torque capacity.
Optional Quick Clamp
Speed up your work with the specially designed quick-connect device "QuickClamp".
Center Lock Rims
Best solution for Center Lock Wheels
QuickClamp Fast Rim Clamping System is compatible with all rims and has been specially developed for "Center Lock" rims used in performance and sports vehicles. This innovative system provides faster clamping with a single nut with a conical screw from the hub, as in balancing machines, without depending on wheel bolts and nuts, and speeds up your work processes.
SKU | 56 00 000 |
---|---|
Rim Diameter | 12"-26" |
Rim Type | Alloy, Steel |
Measuring Type | Digital |
Number of Pistons | 1 Piece |
Direction of Measurement | Vertical |
Control Type | Joystick |
Lathe Type | Foldable, Sliding |
Hydraulic Motor | 1.5 kW |
Motion Engine | 1.1 kW |
Rotation Speed | 5-98 rpm |
Weight | 720 Kg |
Dimensions | 2045x1045x2100 mm |
Package Sizes | n/a |
